Description

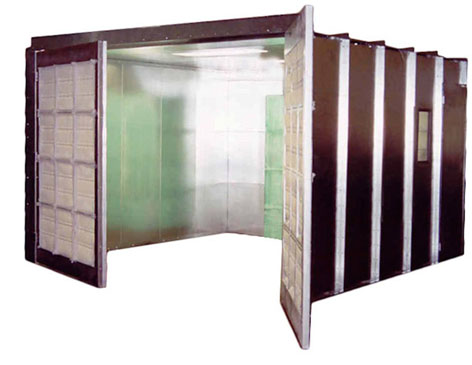

A crossdraft booth design utilizes simplicity in its configuration while providing an economical and efficient solution for coating larger industrial equipment and trucks. It also works well for wood applications. The Col-Met crossdraft style paint booth optimizes airflow with an exhaust fan that pulls clean, filtered air through the work area for exhaust extraction near the rear of the booth. Crossdraft truck and large equipment booths are offered in a range of structural designs including Standard Duty, Heavy Duty and Xtreme Duty. You may also choose from pressurized and non-pressurized, reverse flow, solid back and drive through booths. — Booth Features •Heavy Duty Construction All designs create a bolt free booth interior and panels and support members are precision punched for easy nut and bolt assembly. •Superior Doors Product doors are field hung on slotted hinges to facilitate adjustment on two axes for uneven floors. Our standard 36″ wide man door, with built in observation window, is built into pre-assembled heavy frame. •Industry-Leading Lighting Lighted booths get bright, full booth illumination from four-tube, 48” long, 32-watt, fluorescent light fixtures. Col-Met light fixtures are ETL listed (Class 1 Division 2, Groups A, B, C, D and Class 2 Division 2, Groups F and G). •Efficient Fans & Motors Quality brand-name tubeaxial fans and motors •Air Solenoid Valve Interlocked to the exhaust fan and air supply for the spray application equipment. •Meets Quality Performance Standards Spray booths manufactured by Col-Met meet and/or exceed all applicable OSHA and NFPA regulations. — Booth Options •Durable powder coated white option available •Air replacement units and intake chambers can be added •Control panel and other electrical components can be purchased separately •Optional UL/ETL listed control panel with or without VFD •Height, width and depth can be custom designed to meet specific requirements •Roll-up, bi-fold, or tri-fold doors •Standard duty (10-guage support structure), heavy duty (W6x9 structure), or Xtreme duty (I-Beam construction with trusses) •Solid back, drive through or reverse flow designs •Pressurized or non-pressurized •LED light fixtures
