Description

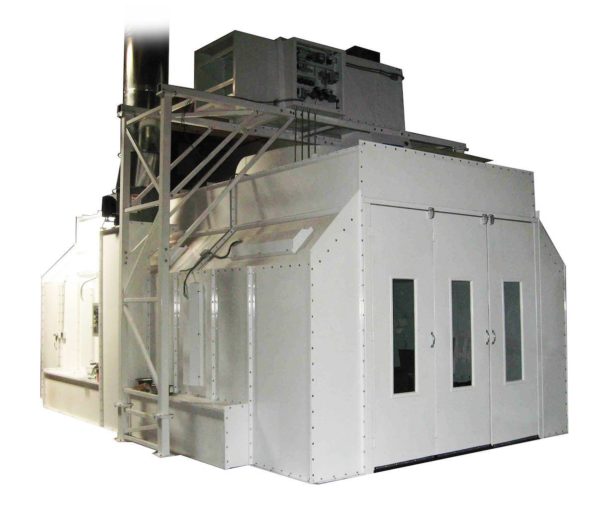

Shops or facilities in search of the most economical solution will appreciate the side downdraft paint booths. With this configuration, there is no need to install a pit while still benefiting from the versatility, functionality and efficiency of a downdraft paint booth. The air is pulled from intake filters at the ceiling where it is directed down along the sides of both walls. This allows for a safer work environment that effectively removes harmful paint fumes while improving the painting and finishing process. Side Downdraft booths are offered in a range of structural design and integrity construction that includes Standard Duty, Heavy Duty and Xtreme Duty. You may also choose from pressurized and non-pressurized, reverse flow, solid back and drive through booths. — Booth Features •Heavy Duty Construction All designs create a bolt free booth interior. All panels and support members are precision punched for easy nut and bolt assembly. •Superior Doors Product doors are field hung on slotted hinges to facilitate adjustment on two axes for uneven floors. Our standard 36″ wide man door, with built in observation window, is built into pre-assembled heavy frame. •Industry-Leading Lighting Lighted booths get bright, full booth illumination from four-tube, 48” long, 32-watt, fluorescent light fixtures. Col-Met light fixtures are ETL listed (Class 1 Division 2, Groups A, B, C, D and Class 2 Division 2, Groups F and G). •Efficient Fans & Motors Quality brand-name tubeaxial fans and motors •Air Solenoid Valve Interlocked to the exhaust fan and air supply for the spray application equipment. •Meets Quality Performance Standards Spray booths manufactured by Col-Met meet and/or exceed all applicable OSHA and NFPA regulations. — Booth Options •Air replacement units and intake chambers can be added •Durable powder coated white option available •Air replacement units and intake chambers can be added •Control panel and other electrical components can be purchased separately •Optional UL/ETL listed control panel with or without VFD •Height, width and depth can be custom designed to meet specific requirements •Roll-up, bi-fold, or tri-fold doors •Standard duty (10-guage support structure), heavy duty (W6x9 structure), or Xtreme duty (I-Beam construction with trusses) •Solid back, drive through or reverse flow designs •Pressurized or non-pressurized •LED light fixtures
